Isometric spool drawings – Erection materials in the material control file

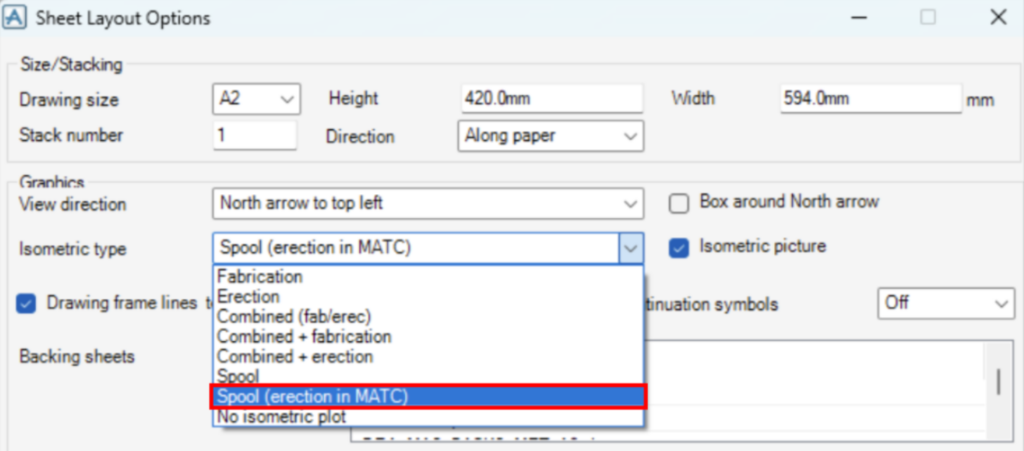

This release adds support for generating isometric spool drawings that include erection details within the material control file. A new option for this functionality is now available in the sheet layout form for the Isometric type
Isometric Material Columns

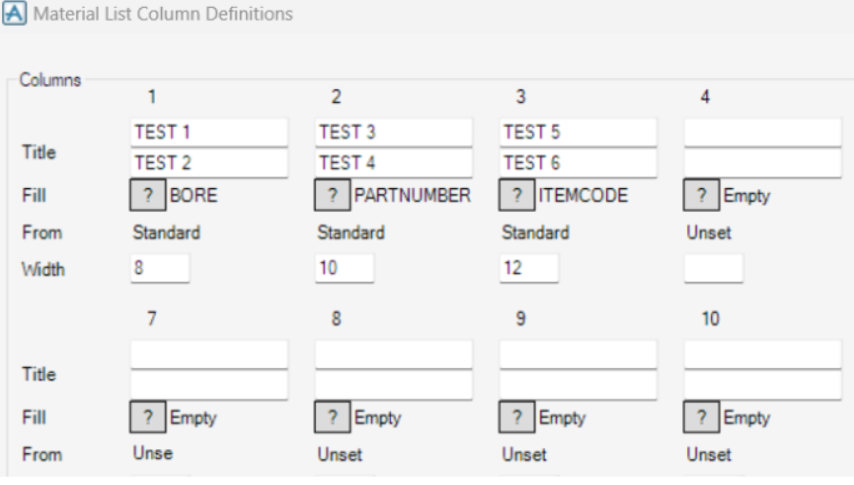

This release adds the capability to separate material list column titles from their alternative texts within the IsoDraft module. This functionality is configured through the Material List Column Definitions form.

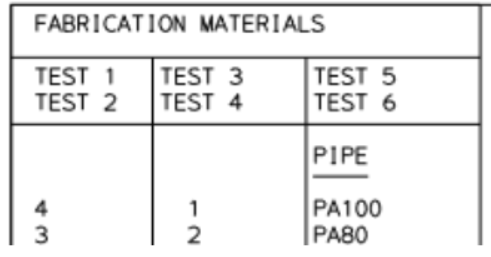

By default, when material list columns are created for standard items, the column title is linked to the ATEXT value. This title can now be modified to any value as needed.
Isometric Reserved Area

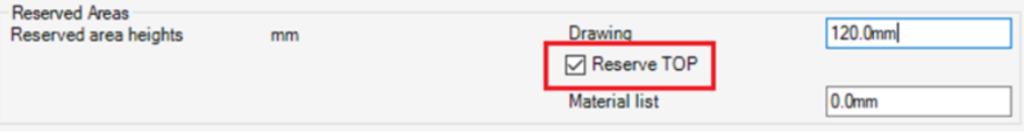

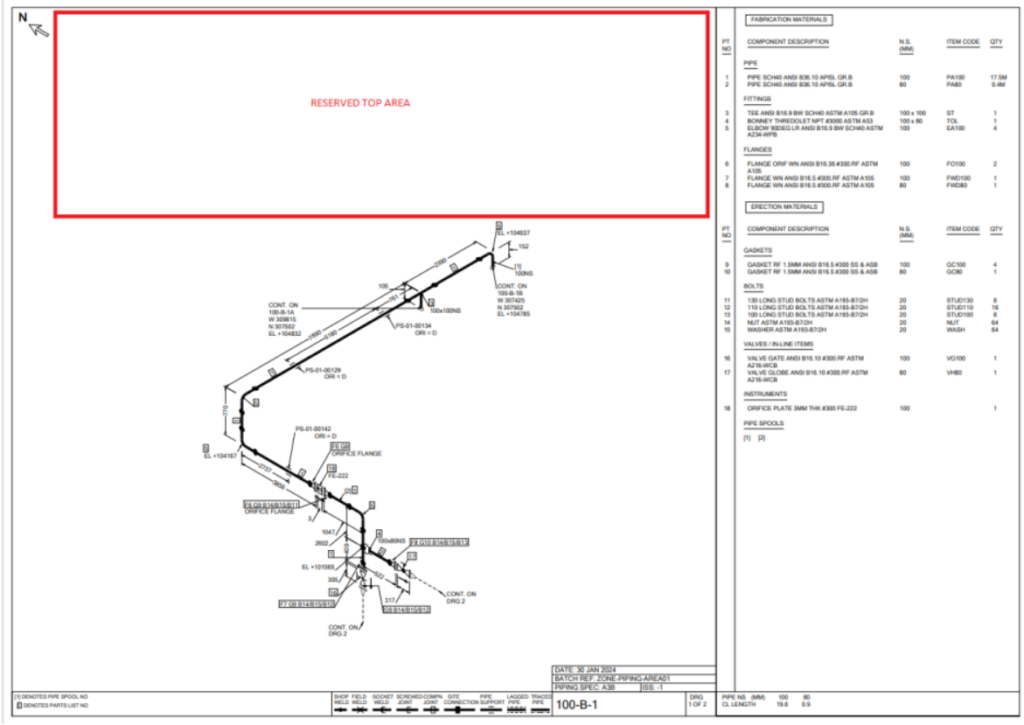

The Isometric reserved‑area option has been improved to allow space to be allocated at either the top or bottom of the sheet.
Additional Precision for Imperial Units

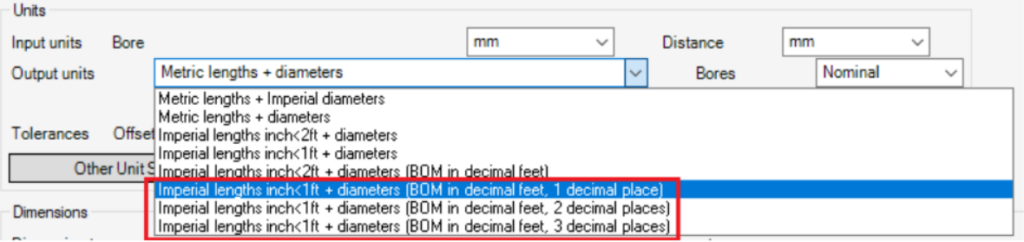

New configurations have been added to the IsoDraft Modify Options form to offer greater precision for imperial units within the IsoDraft module.

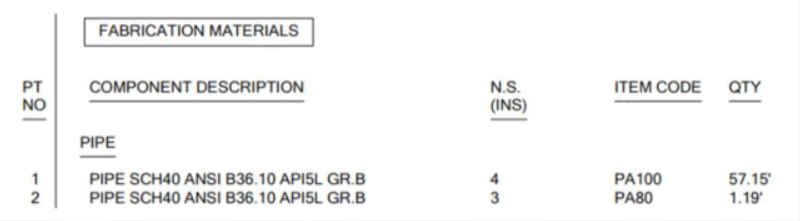

Decimal feet units with 1 decimal place

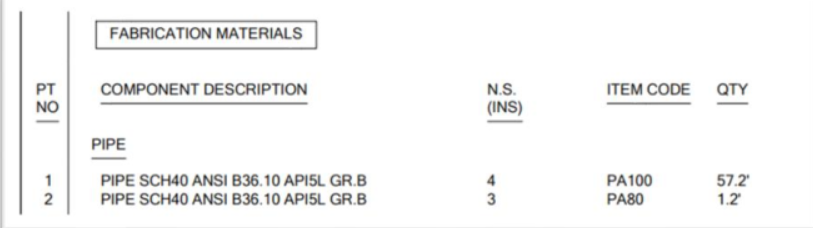

Decimal feet units with 2 decimal places
